Model / Specification
under customer's requirement
Country of Origin
TAIWAN
Surface Treatment
Material
Carbon Steel / Stainless Steel
Alias

Anchors
Patent
Head Marking
Capacity
Minimum Order Quantity
Detailed Description

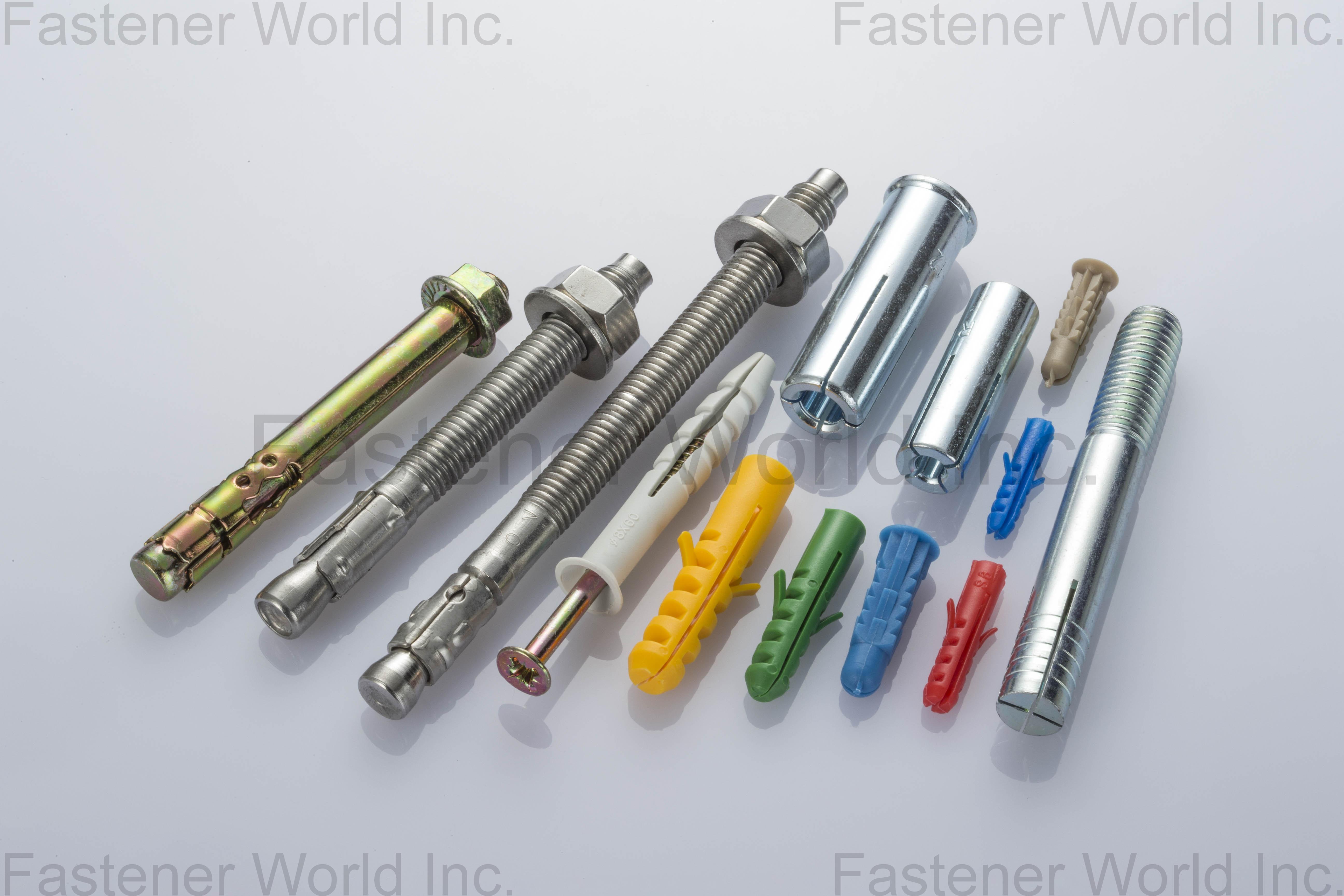

Plastic Anchors
1.These plastic anchors are intended for light duty anchoring applications and offer extra support.
2. The split in the ribbed anchors expand on two opposing sides as you tighten the screw.
Ribs prevent the anchor from turning in the hole during installation.
3. The split in the anchor ensures three way expansion on sides for increased holding power.
4. 1/4" Drill Size. Once anchor installed, they provide a flush, clean appearance in drywall.

Hammer Fixing & Plug
For fixing of concrete, solid bricks, perforated bricks, hollow blocks.
• The fixings are manufactured from the same high- grade and quality-monitored polyimide (nylon) which is also used for the frame fixings with general building inspectorate approval.
• The material is temperature resistant (-40° to +80°C.)
• Pre-assembled for quick and easy installation.
• High holding power.
• Cost-effective alternative for the quick and easy installation of sheets, cable and pipe clips, perforated tapes, subframe systems and wall connection or plaster profiles that do not require an approved fixing solution.

316 Stainless Steel Wedge Anchor Zinc Plated
• The anchor is made from 316 Stainless Steel. This anchor is designed for use in Concrete only, and should never be used in block or brick base material.
• The anchor requires a 3/8" hole to be drilled in the base material (Concrete only).
• The hole should be drilled with carbide tipped bit that meets ANSI standards and used in a hammer drill.
• The one-piece clip is formed around Anchor, assuring full expansion for dependable, superior holding power. Expanding clip will not fall off or twist in the hole.
• The test values listed below were obtained using 200-250 kgs/cm² concrete (no aggregate). A safe working load should not exceed 25% sated values.

Sleeve Anchor ZY
Pre-assembled for quick and easy installation,can be used in thin sections of concrete or solid masonry.
• Head styles for every application.
• The test values listed below were obtained using 200-250 kgs/cm² concrete (no aggregate). A safe working load should not exceed 25% sated values.
All-purpose expansion anchor for use in mediumweight applications. Quick and easy to install with no marking out required. Bolt and drill size marked on sleeve to ensure correct installation. Designed for optimal performance in concrete, brickwork, blockwork and stone. Ideal for stadium seating, satellite dishes, garage doors, shutters, signs and radiators.

1/2" (Inside/Screw 1/2" Diameter) Drop-in Anchor Zinc Plated
• Perfect expansion and specially designed built-in plug ensures full expansion of anchor.
• The anchor is made from Carbon Steel, and is Zinc Plated. This anchor is designed for use in Concrete only, and should never be used in block or brick base material.
• Drop-In Anchors work by pre drilling the hole, dropping the anchor in and then using the setting tool to create the expansion for securing the bolt. This anchorage system then allows you to remove the bolt if needed and leaves the anchor in place and not visible if you choose not to replace the permanent fixing.
