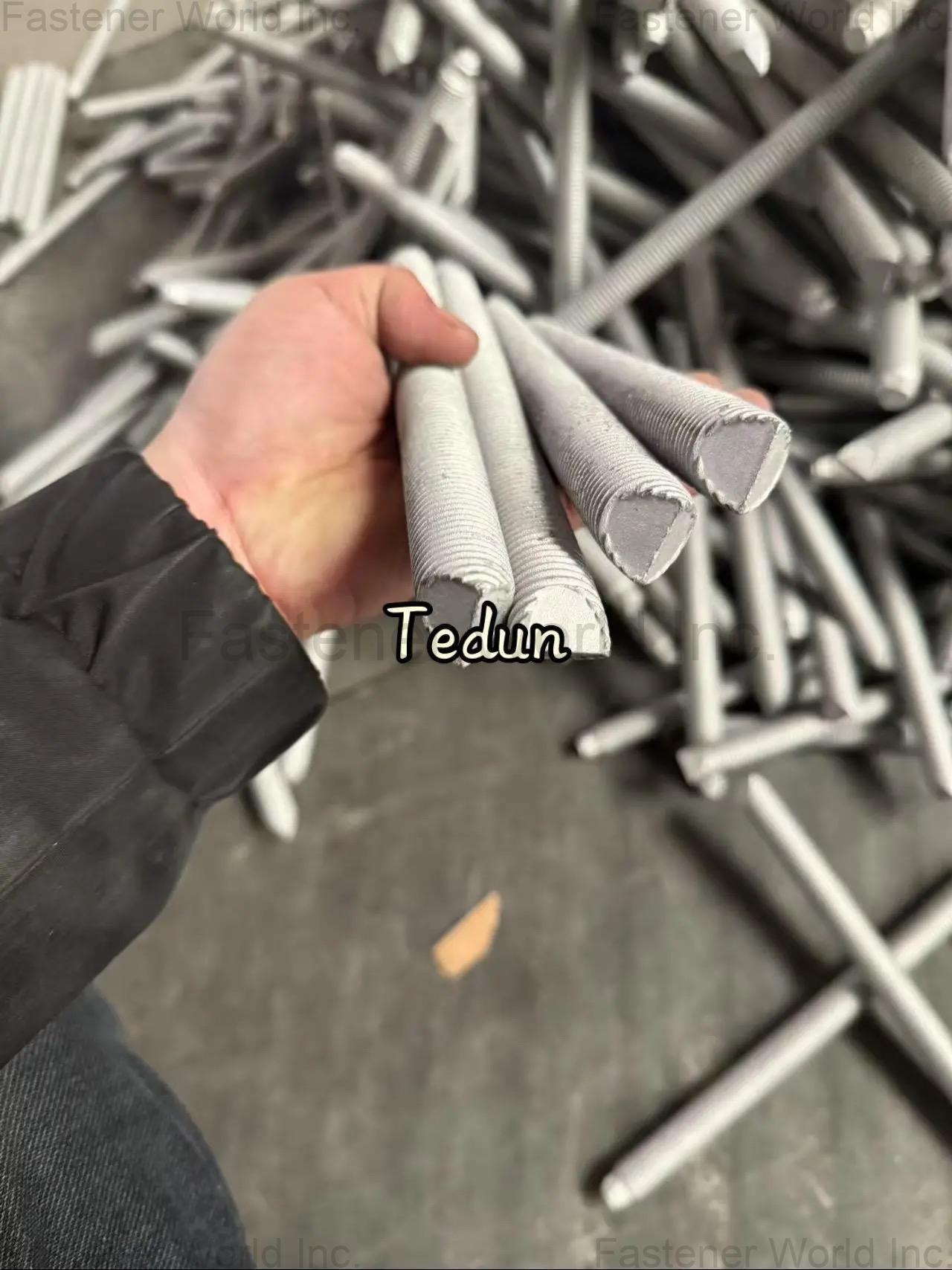

Chemical anchor bolts consist of metal parts (screw, flat washer, nut) and chemical agent tubes (modified vinyl resin, quartzite, corundum, hardener)

Product Description:
Chemical anchor bolts consist of metal parts (screw, flat washer, nut) and chemical agent tubes (modified vinyl resin, quartzite, corundum, hardener)

Application:
Curtain wall embedded parts fixing
Curtain wall keel fixing
Glass railing fixing
Decorative eaves fixing
Subway, rail transit

Material:
4.8 grade steel, 5.8 grade steel, 8.8 grade steel, stainless steel 304 (A2-70) / 316 (A4-80)
Surface treatment (except stainless steel): hot-dip galvanized (zinc layer thickness > 45um)
for use in normal environment

Base material:
Non-cracked concrete
Natural stone

Advantages:
· Stable and excellent anchoring performance under high load, vibration load and impact load.
· The metal bottom is precision milled, the milling tip cuts evenly and smoothly, fully stirring the glue, making the chemical components better integrated and the anchoring force stronger.

Operation process
1. Use a straight hole drill bit to drill holes of corresponding diameter and depth

2. Use a soot blower to blow soot at the hole for more than 2 times.
3. Use a brush to clean the dust on the hole wall for more than 2 times.
4. Use a soot blower to blow soot at the hole until there is no dust overflowing from the hole.

5. Place chemical anchor agent
6. Use torque drill to screw in high-strength chemical anchor to complete anchoring

Advantage
Resistant to acid and alkali, heat resistance
Expansion force is negligible, suitable for minium
edge distance.
Rapidly curing, fast install
Environmentally friendly
